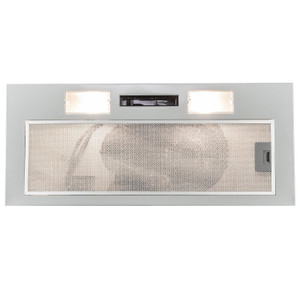

The CUP91SI is a 90cm wide under canopy cooker hood that will seamlessly blend in with your kitchen whilst providing powerful air extraction. Being mounted into a cupboard provides a minimalistic look, as only the bottom will be visible and the LED downlights can be left on when you are not cooking to provide a cool, ambient light in your kitchen.
This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.
This cooker hood comes with a 2 Years Parts & Labour Guarantee*
Features
3 variable speeds
Push button controls
2 x 2W LED lights
Ducted or re-circulated installation
1 x dishwasher proof grease filter
Optional Accessories
2 x SIA2 recirculation charcoal filters available from our store
D5 & D7 external ducting kits available from our store
Fitting Notes
Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.
Technical Specifications
Ducting outlet diameter (mm): 150
Extraction rate (m³/hr): 850
Noise level (dBa): 67
Fuse rating (A): 3
Product dimensions (mm): W898 x D290 x H285
Net / gross weight (kg): 8.5 / 9.5
Power (W):184
Mains lead length (m): 1
Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
